IK Multimedia - iRig Mix

Specs

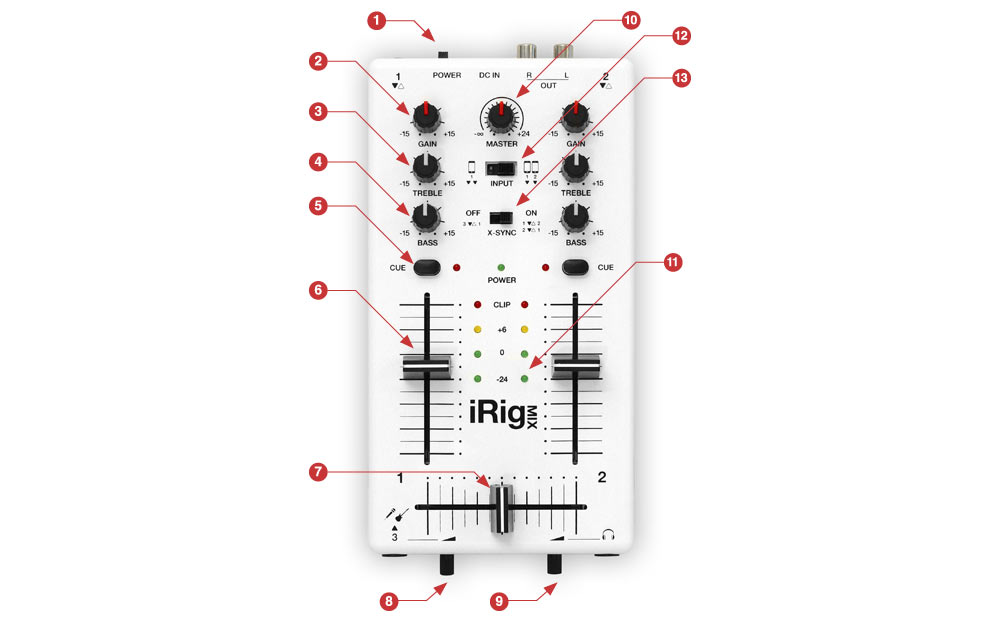

iRig MIX Controls and Indicators

1. POWER: turn on iRig MIX. POWER LED will illuminate.
2. GAIN: adjust this control to set the input gain for Channel 1 and 2.
3. TREBLE: adjust this control to adjust the high frequencies on Channel 1 or 2.
4. BASS: adjust this control to adjust the low frequencies on Channel 1 or 2.
5. CUE: press this switch on Channel 1 or 2 depending on which one you want to monitor in your headphones.
6. CHANNEL LEVEL SLIDER: move this slider up to increase the volume of Channel 1 or 2.
7. CHANNEL CROSSFADER: move this slider to the LEFT to hear Channel 1 on the master outputs, or move this slider to the RIGHT to hear Channel 2 on the master outputs.
8. CHANNEL 3 LEVEL: this control is used to set the level for a microphone or instrument connected to Channel 3.
9. HEADPHONE LEVEL: this control is used to set the headphone volume.
10. MASTER LEVEL: use this control to adjust the global iRig MIX output volume.
11. MASTER LEVEL LEDS: these LEDs are used to monitor the iRig MIX level of LEFT and RIGHT master output channels.
12. INPUT SWITCH: set this switch to the LEFT position (ONE DEVICE) when using the mixer with only ONE iOS device or other music player. Set this switch to the RIGHT position (TWO DEVICES) when using the mixer with TWO iOS devices or other music players.
13. X-SYNC SWITCH: When used with iOS devices, iRig MIX can send audio from device 1 to device 2 and audio from device 2 to device 1 to allow cross-syncing using DJ RIg app. When X-SYNC is disabled, audio from MIC / Instrument channel 3 input is sent to the iOS device connected on channel 1 for processing with an app like AmpliTube or VocaLive.

Line Input:

Frequency response: 20Hz – 20kHz (±2dB)
SNR: -80dB
THD+Noise: 0.01%
Nominal level: -10dBV
Maximum level: 3 Vrms
Impedance: 47k Ohm
Socket: 3.5mm stereo / TRRS

Line Output:

Frequency response: 20Hz – 20kHz (±2dB)
SNR: -80dB
THD+Noise: 0.05% (20Hz – 20kHz Bandwidth)
Nominal level: -10dBV
Maximum level: 6 Vrms
Impedance: 200 Ohm
Socket: RCA

Mic / Hi-Z Input:

Frequency response: 20Hz – 20kHz (±2dB)
SNR: -80dB
THD+Noise: 0.05% (20Hz – 20kHz Bandwidth)
Maximum level (Min Gain): 3Vrms
Minimum level (Max Gain): 10mVrms
Impedance: 1 MOhm
Socket: 6.35mm mono

Headphones Output:

Frequency response: 20Hz – 20kHz (±2dB)
SNR: -80dB
THD+Noise: 0.05% (20Hz – 20kHz Bandwidth)
Maximum power: 125mW into 32 Ohms
Socket: 6.35mm stereo

Controls:

Low tone controls: ±15 dB @ 80 Hz, shelving
High tone controls: ±15 dB @ 8 kHz, shelving
Trim controls: ±15 dB, 0 dB at center

Power Supply:

USB powered through a micro USB (D TYPE) connector
Power consumption: 5 Watt typical; 10 Watt with full headphone output

Package includes

iRig MIX
2 x 3.3ft / 1m 1/8" / 3.5mm audio cables to connect iPhone/iPod/iPad
1 x 3.3ft / 1m RCA audio cable to connect powered speakers
Power Supply Unit with micro USB cable

Dimensions

110mm/4.33" x 217mm/8.54" x 46mm/1.81" (W x L x H)
Weight: 230g/8.11oz

Requirements

iRig MIX is compatible any audio device (such as MP3 players, CD players etc).

iOS Devices

iRig MIX is compatible with any iOS device.
X-Sync feature requires DJ Rig app running on iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPhone 4s, iPhone 4, iPhone 3GS, iPod touch (5th, 4th and 3rd generation), iPad Pro, iPad mini 4, iPad Air 2, iPad mini 3, iPad Air, iPad mini 2, iPad 4th generation, iPad mini, iPad 3rd generation, iPad 2, iPad. iOS 4.3 or later is required.

Android Devices

iRig MIX is compatible with any Android device.

Computers

Mac®: any Mac OS X based computer.

Windows®: any Windows based computer.
